ALLEN MLI-TE

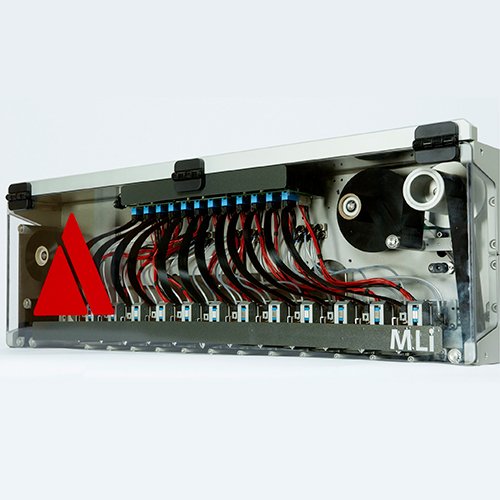

The Allen MLi-TE is a multiple head thermal transfer print system that utilizes a unified, configurable design that only requires one controller and one consumable for up to 12-lanes of print. Unique, serialized print messages consisting of expiration date, lot, serialized batch and QR codes can be utilized across each individual lane of print. The 12-head system is capable of printing up to 800 messages per minute, allowing for maximum throughput.
The Allen MLi-TE is a more economical and user-friendly alternative to traversing CIJ and TTO machines, pairing seamlessly with form-fill-seal stick pack and sachet machines.
KEY FEATURES

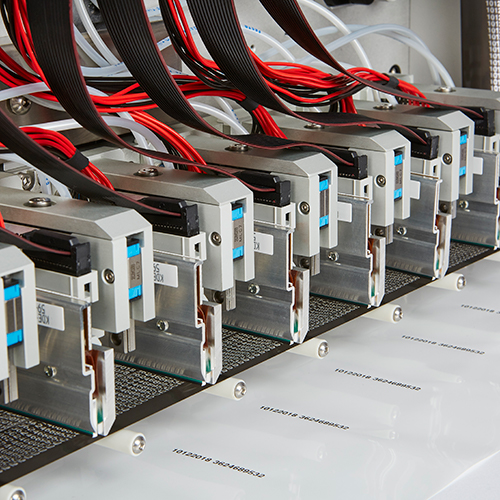

- Prints up to 800 messages per minute (12-head system) by utilizing multiple thermal printheads and a high speed shuttling carriage
- Single modular streamlined design with minimal cabling allows for easy integration with other machines
- Simple, centralized message creation for individual and batch messages across all lanes of print
- Clean and efficient single consumable for the entire system reduces downtime and complexity
- Multiple standard configurations allow you to scale the system to the unique application requirements
- Prints high quality barcodes, text and graphics on porous and non-porous surfaces
- Print areas up to 2.20” (56 mm) wide and 1.5” (40 mm) or 3.5” (90mm) in length
Specifications
| Controller | A:touch2 | |||
| Communications | Ethernet/Serial | |||
| Frame Size | ||||
| Height | 275 mm | |||
| Depth | 273 mm | |||
| Width | 620 mm /820 mm /1020 mm | |||
| Ribbon | ||||
| Ribbon Length | 600 m | |||
| Ribbon Width | 60 mm | |||
| Ribbon Diameter | 110 mm Max. | |||
| Ribbon Type | Externally Coated | |||
| Max. Spool Speed | 2000 mm/Second | |||
| Print Area | System Type | 620 | 820 | 1020 |
| Stroke Area | 40/90 mm | 40/90 mm | 40/90 mm | |
| Max. Print Area | 425 mm | 625 mm | 825 mm | |
| Max. Number of True Edge Printheads | 8 | 12 | 12 | |
| True Edge Printheads | ||||
| Max. Number | 12 | |||
| Useable Print Width | 53 mm | |||
| Resolution | 300 dpi | |||
| Print Speed | 50-70 mm/Second | |||
| Min. Thermal Printhead Spacing | 46 mm | |||
| Max. Throughput | 70 Cycles/Minute | |||
| Resistance | Individual Adjustment | |||
| Operational Mode | Intermittent | |||
| Electrical | ||||
| Voltage | 100-240 VAC | |||
| Frequency | 50-60 Hz | |||
| Current | Max. 20A (100 VAC) | |||
| Protection | ESD Protected | |||
| Environmental Conditions | ||||
| Temperature | 86°F to 104°F (30°C to 40°C) | |||
| Humidity | 40 to 90%, Non-Condensing | |||
