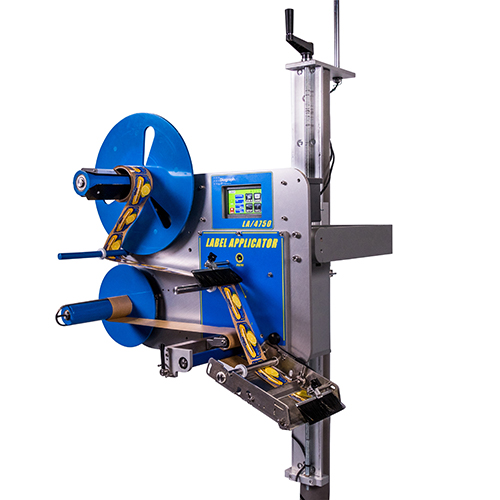

LA4750 Electric Label Applicator
The LA4750 Electric Label Applicator is designed using servo-controlled label dispensing technology and smart sensing controls to achieve precise label placements in high-speed operations. The system features smart technology that auto-detects irregularities in operation, reducing complications from missing labels, variable line speeds and inconsistent product distances - resulting in the industry's smartest, most reliable all-electric label applicator. The LA4750, available in wipe and tamp models, can apply labels to the side, top, bottom and corner-wrap of primary product, case and pallet panels.
No pneumatic air required. Simply plug in the machine, set up your controls and begin labeling.
KEY FEATURES
- Brushless servo motor drives precision label dispensing to achieve superior label placement
- Independent rewind drive works as a clutch-less, no-adjustment system that is easy to web and minimizes the chance for mistakes

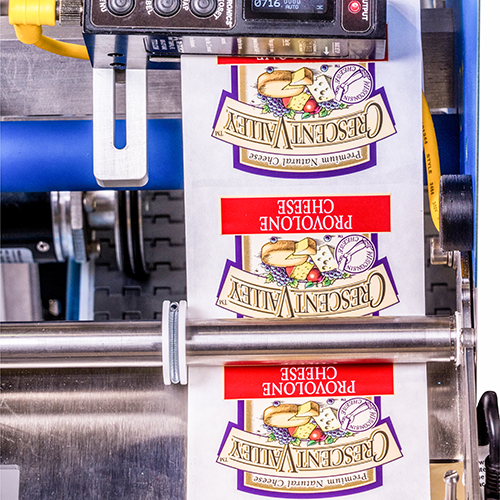

- Smart sensing technology detects missing labels at the peel point, advancing the web past missing label area to prevent double feeds and missed products
- Color touchscreen display features an intuitive user interface that provides real-time reporting and on-board diagnostics
- Line speed encoder allows for accurate label placements at variable line speeds

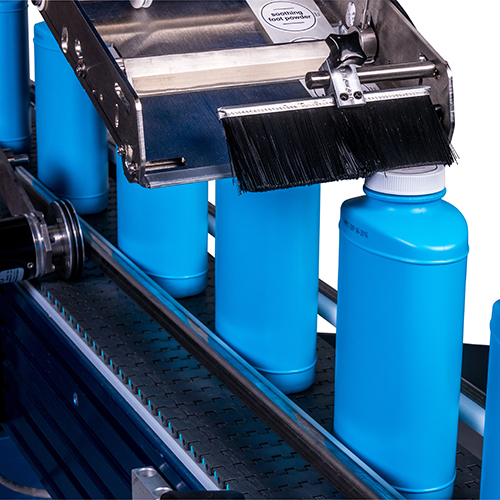

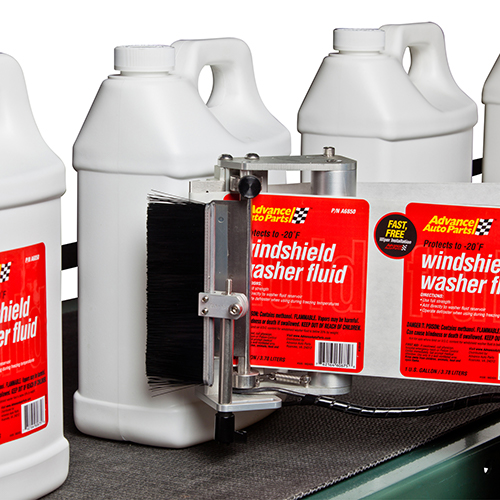

- Applicator module configurations accommodate side, top, bottom, corner wraps and tamp/blow label applications
- Discrete I/O Card option allows the system to interface to PLC and integrate directly to scanner and conveyor controls
- Wipe model dispenses labels at speeds up to 800 PPM
- Tamp model offers maximum throughput of 120 PPM depending on applicator configuration and label size
- Compatible with WIPE, E-TAMP, E-TAMP/BLOW, E-FASA, E-WASA, and E-BLOW BOX applicator modules
Specifications
| Label Applicator | |
| Dimensions (with Yoke) | 31 in. (787 mm) L x 27 in. (686 mm) H x 26 in. (660 mm) D |
| Certifications | CE, CSA, FCC approved, Listed (UL 60950) |
| Supply Roll Capacity | 14 in. (355.6 mm) OD |
| Core | 3 in. diameter |
| Label Length | 0.5 in. (12.7 mm) Min. to 22 in. (558.8 mm) Max. |
| Narrow Web Label Width | 1 in. (25.4 mm) Min. to 6 in. (152.4 mm) Max. |
| Wide Web Label Width | 1 in. (25.4 mm) Min. to 9 in. (228.6 mm) Max. |
| Temperature | 41°F - 104°F (5°C - 40°C) |
| Humidity | 10 to 85% Relative Humidity, Non-Condensing |
| Weight | |
| Wipe | 85 lbs (385 kg) (includes yoke, no stand) |
| E-TAMP, E-WASA | 120 lbs (54.4 kg) (inclides yoke, no stand) |
| E-FASA | 130 lbs (58.9 kg) |
| Chi-Stand | 96 lbs (43.5 kg) |
| Accuracy | |
| E-TAMP, E-WASA, E-FASA, WIPE | ±0.06 in. (±1.6 mm) |
| E-TAMP/BLOW | 0.09 in. (±2.4 mm) |
| Product Rate | |
| WIPE | 800 PPM Max. |
| E-TAMP | 120 PPM Max. |
| E-TAMP/BLOW | 55 PPM Max. |
| E-FASA | Single Apply: 52 PPM Max. Dual Apply: 28 PPM Max. |
| E-WASA | Dependent on label length, print speed and product spacing |
| E-BLOW BOX | 300 PPM Max. |
| Line Speed | |
| WIPE | 300 FPM Max. |
| E-TAMP, E-TAMP/BLOW | 150 FPM Max. |
| E-FASA | 75 FPM Max. |
| E-WASA | 125 FPM Max. |
| HIGH SPEED TAMP | 300+ FPM Max. |
